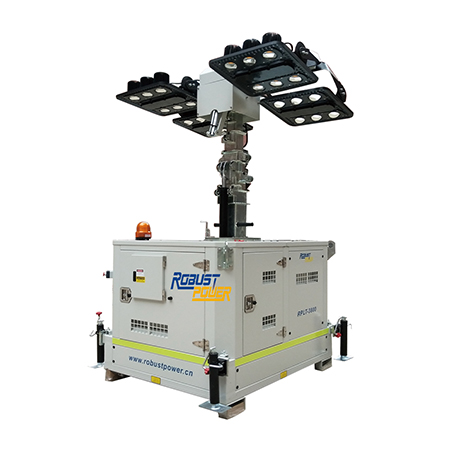

Hydraulic light tower
The RPLT-3700 features a hydraulic mast, 4×480W LEDs, and DC48V power with a 110% containment frame base for stability. Its silent operation delivers intense illumination for construction,Harbor, and road lighting.
LED LAMP
Rate Power （DC 48V）
CONTAINMENT FRAME BASE
Specification
Robust Power | RPLT-3800 | ||
Mobile Light Tower | |||
Lamp Lumens | 196000/268800 lm | Wattage | 4*350W/4*480w |
Lamps | LED Lamp | Fuel tank capacity | 100L |
Mast | Hydraulic mast | Fuel Consumption | 1.05 L/hr |
Maximum Height | 8 M | Rate Power | 7/8 KW |
Rotation | 350 degrees | Rate Frequency | 50/60 Hz |
Engine | Kubota D1105-BG/Kohler KDW1003 /Yanmar 3TNV76-GGHWC Diesel Engine | Rated Voltage | 110V/120V/220V/230V/240V |
Coolant | Water | Number of cylinders | 3 |
Speed | 1500/1800 Rpm | Dimensions | 1500*900*2400mm |
Alternator | 4-pole/ Brushless,excitation | Weight | 980 KG |
